Quick And Environment friendly Automotive Battery Monitoring ICs

ABLIC’s S-19114 sequence delivers voltage detection for enhanced automobile security in compact, low-consumption designs appropriate for EVs, HEVs, and PHEVs.

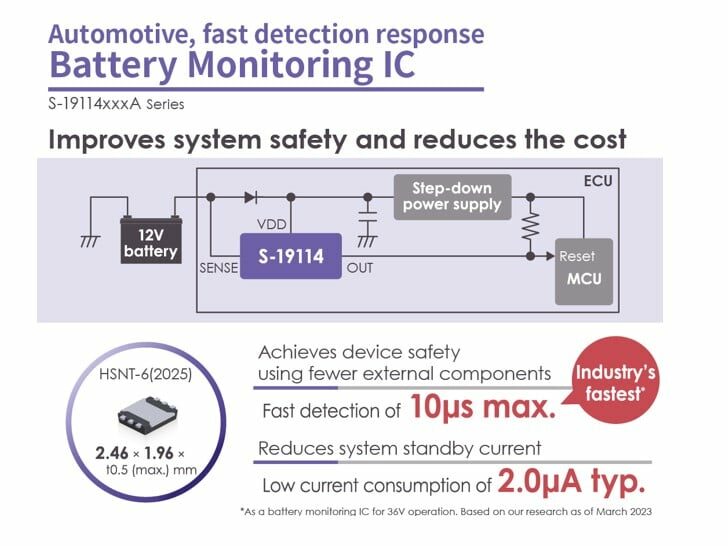

ABLIC has launched the S-19114 Collection, a line of automotive high-withstand voltage battery monitoring ICs identified for his or her quickest voltage detection response, notably appropriate for difficult situations. Trendy autos embody an array of security provisions. For example, there’s a safeguard towards disruptions in voltage provide from the battery to the Engine Management Unit (ECU). When the ability provide from the battery is interrupted, it leads to a drop in voltage to the ECU. As soon as this voltage drop is recognized, the ECU initiates a safe reset course of. This reset operation calls for a particular period, usually completed by incorporating a capacitor on the ECU’s enter. On condition that voltage to the ECU additionally experiences drops throughout transmission of detection alerts by the battery monitoring IC, the capacitor configuration should furnish the ECU with sufficient time to conduct a safe reset even throughout such situations.

The battery monitoring IC finds versatile utility examples, together with voltage detection for automotive batteries, guaranteeing their protected and environment friendly operation. Furthermore, by optimising their efficiency, the IC proves helpful for varied crucial automotive parts comparable to engines, transmissions, suspensions, and ABS. Moreover, its significance extends to Electrical Autos (EVs), Hybrid Electrical Autos (HEVs), and Plug-in Hybrid Electrical Autos (PHEVs), the place it performs a pivotal position in monitoring battery voltages, contributing to the general operational integrity and security of those autos.

The corporate claims that the ICs have a compact design with an ultra-compact automotive package deal, decreasing its footprint by roughly 20% in comparison with earlier fashions. The voltage detection response time has been considerably improved, enhancing its suitability for demanding environments. They function with low present consumption, guaranteeing steady battery monitoring. The wide-rated voltage vary of the monitoring voltage enter pin (-30V to 45V) eliminates the necessity for standard dividing resistors that usually result in larger standby currents. This development, mixed with lowered capacitors and smaller package deal sizes, leads to substantial area financial savings in automotive functions. The Collection finds utility in automotive battery voltage detection, Battery Administration Methods (BMS), onboard chargers, and DC/DC converters.
